Polymer Insulators
We offer a comprehensive range of high-quality, reliable insulator products that meet international standards, customer specifications and the evolving demands of the power industry. All our products undergo Design and Type Tests in accordance with the relevant IEC standards, conducted at reputed NABL-accredited laboratories, ensuring full compliance, durability, and performance assurance.

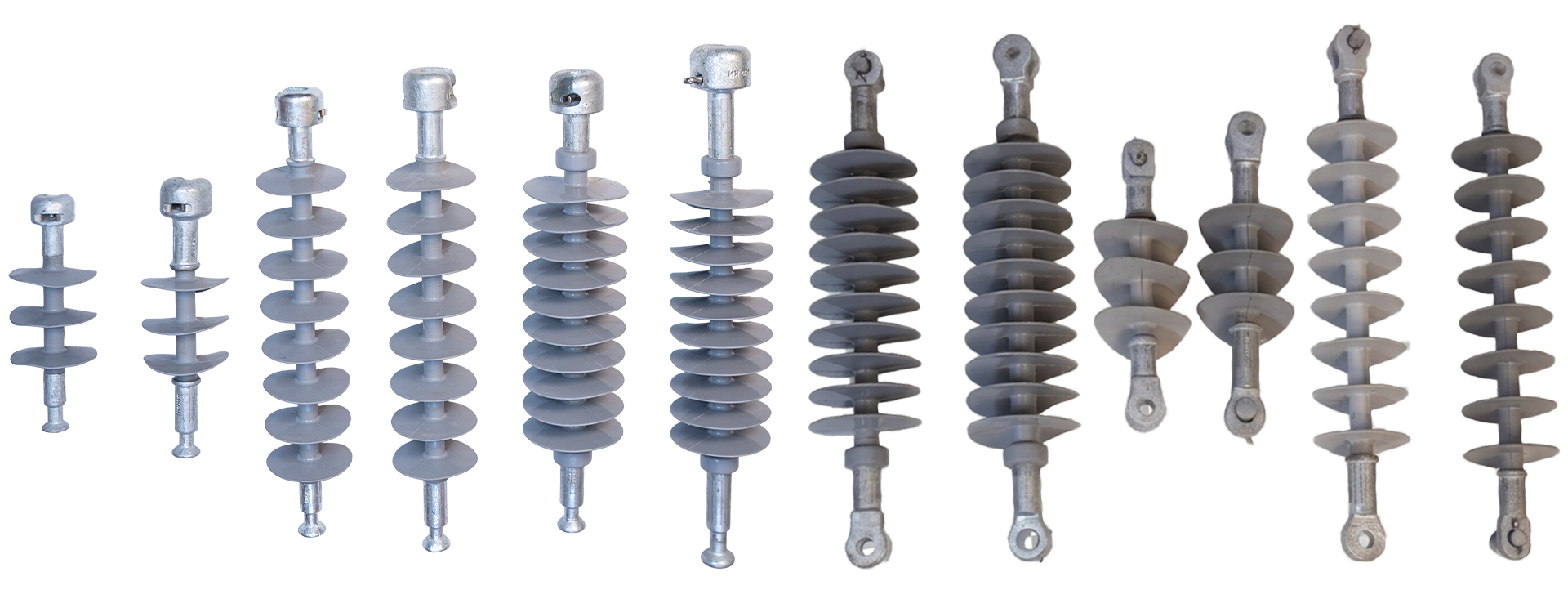

Polymer Long Rod Insulators
11kV - 33kV
Designs available to cater to diverse environmental and pollution
requirements with 25mm/kV, 31mm/kV & 36mm/kV creepage distance profiles.
Long Rod Composite Polymer Insulators Ball & Socket and Tongue & Clevis type of 45kN, 70kN, 90kN and 120kN SML consisting of high-strength fiberglass rod and lightweight, hydrophobic & durable silicone rubber sheds are suitable for use in Suspension and Tension mode to support 11kV - 33kV overhead lines in polluted, coastal, high-wind and challenging areas. Both Single shot and Over moulding designs are available.

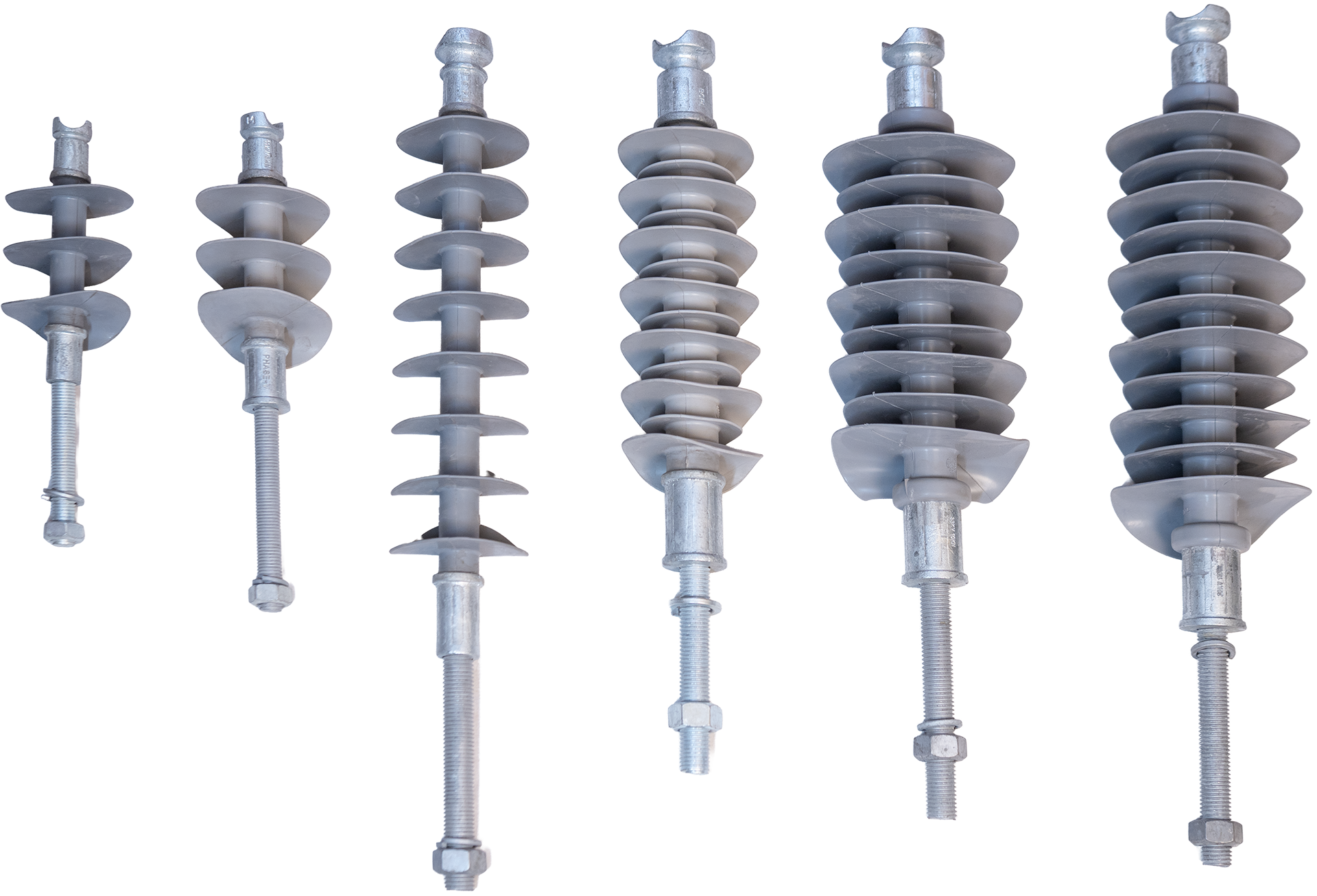

Polymer Pin Insulators
11kV - 33kV
Designs available to cater to diverse environmental and pollution
requirements with 25mm/kV, 31mm/kV & 36mm/kV creepage distance profiles.
Polymer Pin Insulators of 11kV - 33kV ratings having 5kN and 10kN Mechanical Faling Loads are designed for use in Power distribution to handle electrical load while providing resistance to vandalism and harsh environments.

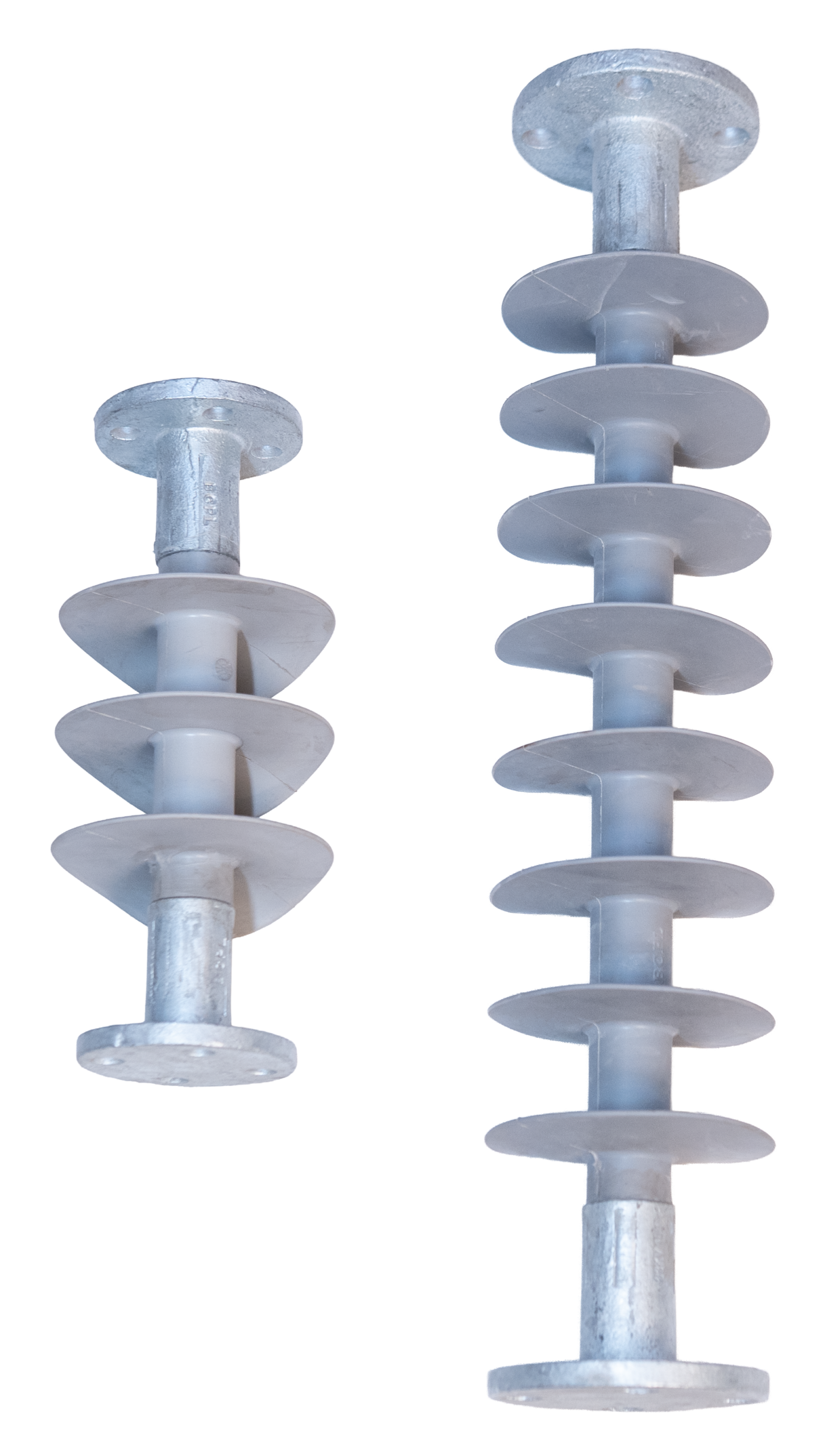

Polymer Post Insulators
11kV - 33kV
Polymer Post Insulators of 11kV - 33kV ratings are designed to support Busbars, Disconnector Switches and Circuit Breakers. It is primarily used where a rigid, self-supporting structure is needed to hold live electrical parts in place.
